Blood Pump set

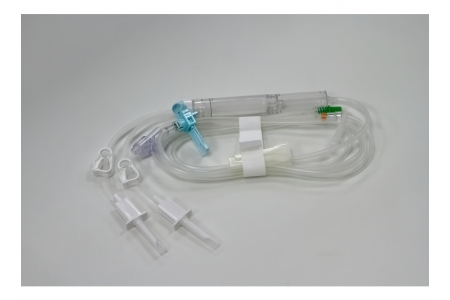

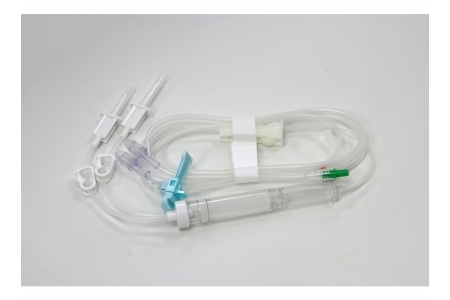

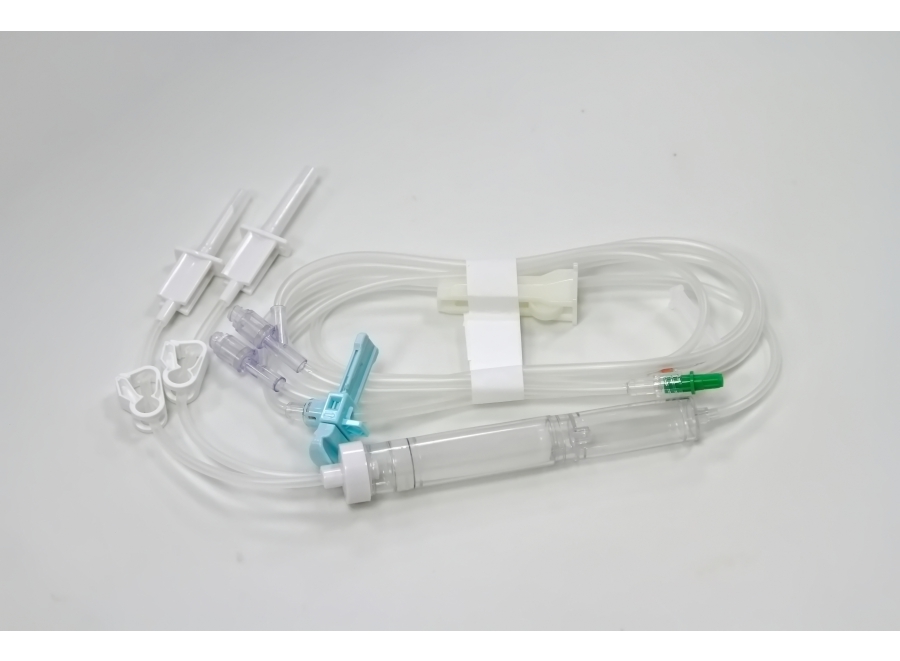

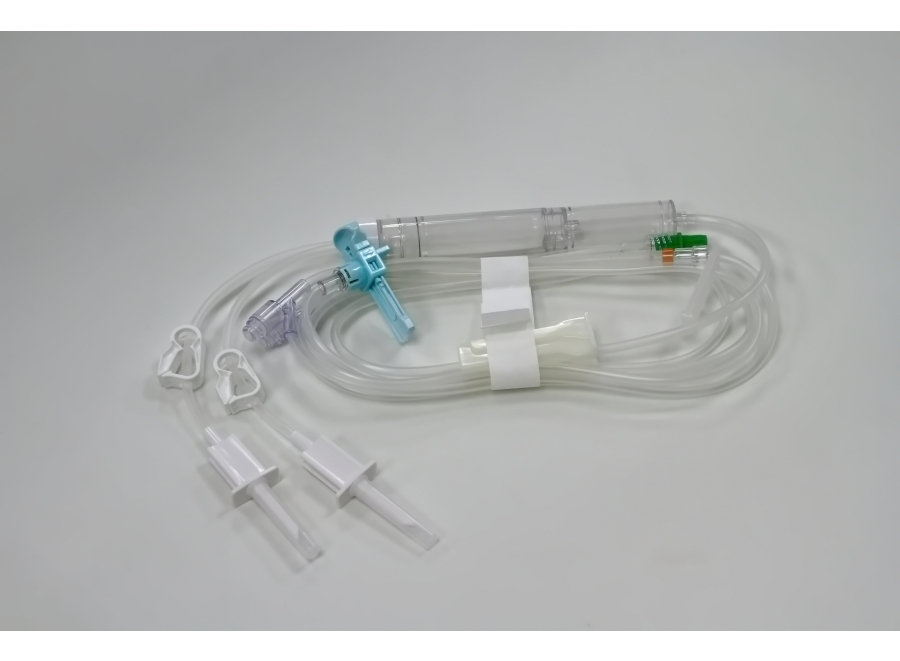

BTS704 - “Needleless” Transfusion Set-Pump Transfusion Set SAFETY NEEDLE FREE(Y TYPE)
Spec
1. The insertion needle assembly includes (1) a sheath, (2) an insertion needle, (3) an infusion tubing, and (4) an injection locking clip. Its characteristics are:
(1) The insertion needle has a smooth, firm edge, making it easy to grip during operation.
(2) The tip of the insertion needle is sharp, allowing for smooth insertion and removal from the infusion bottle or soft bag without slipping.
(3) The insertion needle communicates seamlessly with the infusion tubing and infusion cartridge, and the connection is secure.
(4) The insertion needle and sheath lock tightly together without detaching.
(5) The injection locking clip is adjustable and not easily loosened.
2. The infusion cartridge includes a 200-micron filter: transparent and elastic, allowing clear visibility of the volume and number of drops (1mL ≒ 15-20 drops).
3. The infusion tubing:
(1) transparent, smooth, and unobstructed; it should immediately recover after being folded or compressed; the connection to the infusion cartridge should be tight and secure without detachment or leakage.
(2) The Y-type infusion connector is a needle-free connector.
(3) For use with a blood transfusion machine; the machine's sensor can detect sensitive signals.
(4) The infusion tubing end has a spiral male adapter that fits tightly with the needle hub without leakage.
(5) The connector sheath is sturdy, with smooth edges that fit snugly and do not detach when fitted with the connector.
(6) The infusion push section is made of silicone to prevent deformation of the infusion tubing due to compression.
(7) The total length of the product is greater than 300 cm.
(8) Two Y-type infusion connectors are included.
(9) Spiral connector and sheath.
4. Overall material: Non-DEHP
5. Single sterile packaging, indicating the batch number, manufacturing date, and expiration date or shelf life.
(1) The insertion needle has a smooth, firm edge, making it easy to grip during operation.
(2) The tip of the insertion needle is sharp, allowing for smooth insertion and removal from the infusion bottle or soft bag without slipping.
(3) The insertion needle communicates seamlessly with the infusion tubing and infusion cartridge, and the connection is secure.
(4) The insertion needle and sheath lock tightly together without detaching.
(5) The injection locking clip is adjustable and not easily loosened.
2. The infusion cartridge includes a 200-micron filter: transparent and elastic, allowing clear visibility of the volume and number of drops (1mL ≒ 15-20 drops).
3. The infusion tubing:
(1) transparent, smooth, and unobstructed; it should immediately recover after being folded or compressed; the connection to the infusion cartridge should be tight and secure without detachment or leakage.
(2) The Y-type infusion connector is a needle-free connector.
(3) For use with a blood transfusion machine; the machine's sensor can detect sensitive signals.
(4) The infusion tubing end has a spiral male adapter that fits tightly with the needle hub without leakage.
(5) The connector sheath is sturdy, with smooth edges that fit snugly and do not detach when fitted with the connector.
(6) The infusion push section is made of silicone to prevent deformation of the infusion tubing due to compression.
(7) The total length of the product is greater than 300 cm.
(8) Two Y-type infusion connectors are included.
(9) Spiral connector and sheath.
4. Overall material: Non-DEHP
5. Single sterile packaging, indicating the batch number, manufacturing date, and expiration date or shelf life.
