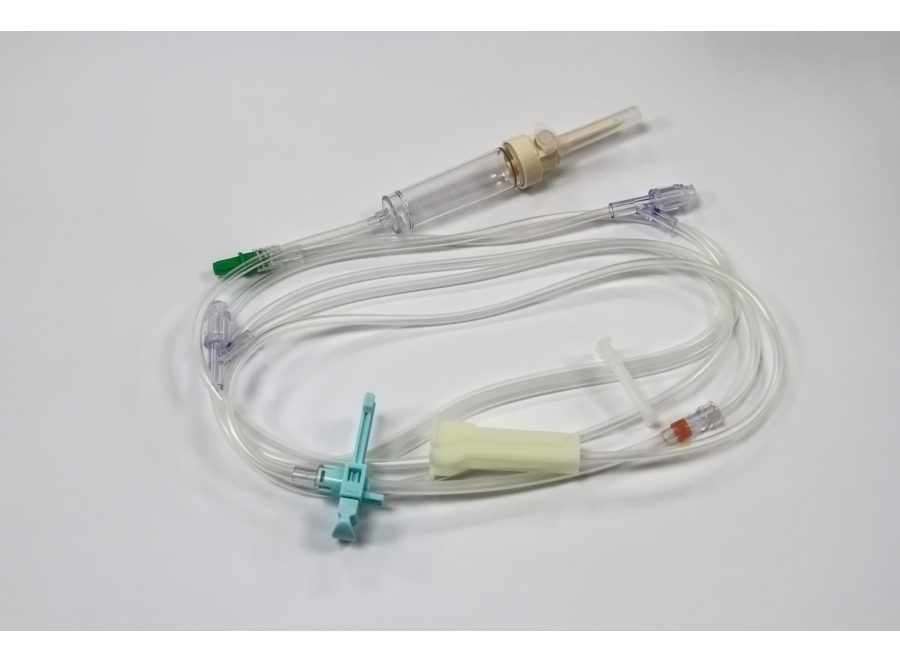

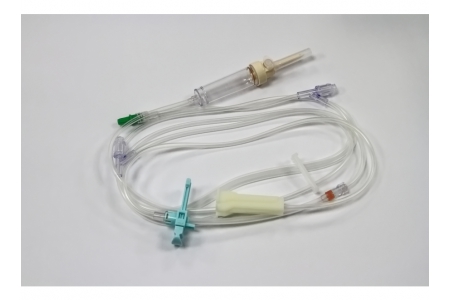

Spike Assembly, including:
(1) Spike with filter membrane
(2) Protective cap

Characteristics:
(1) Smooth, even, and sturdy edges for easy handling during operation.
(2) Sharp tip enabling smooth insertion into and withdrawal from infusion bottles or soft bags without slippage.
(3) Unobstructed flow between the spike and the drip chamber, with secure connections.
(4) The air vent does not cause dripping during use.
(5) The protective cap securely locks onto the spike and does not detach.

Drip chamber: Transparent and flexible, allowing clear observation of the fluid volume and drip rate; 1 mL ≈ 15–20 drops.

Infusion tubing:
(1) Transparent, smooth, and unobstructed; immediately returns to its original shape after compression. The connection to the drip chamber shall be tight and secure, without detachment or leakage.
(2) Y-site infusion connectors are needle-free connectors, with materials suitable for intravenous infusion of lipid emulsions and chemotherapy drugs.
(3) Compatible with infusion pumps; pump sensors can detect accurately and sensitively.
(4) The distal end of the infusion tubing is a spiral male adaptor, providing a tight, leak-free connection with the needle hub.
(5) Connector protective caps are robust, with smooth edges, fitting tightly onto the connectors without detachment.
(6) The pumping segment of the infusion tubing is made of silicone to prevent deformation due to compression.
(7) Total product length greater than 260 cm.
(8) Two (2) Y-site infusion connectors.
(9) Spiral connectors and protective caps included.

All materials are Non-DEHP.

Single sterile packaging, labeled with manufacturing lot number, manufacturing date, and expiration date or shelf life.
